Johnson Water filter Screen Slot FIlter Screen Pipe Large Diameter 5.8M Length

  • 1
  • 2

Brand Name : Heng Yuan

Model Number : HY005

Certification : ISO9000

Place of Origin : Hebei,China

MOQ : 1 pcs

Price : Negotiation

Payment Terms : L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/Month

Delivery Time : 7-10 work days,according to the quantity

Packaging Details : Moister-Barrier with each piece,64 pcs per 20 ft container

Package : Woden box, Container

Slot size : Customize size,0.05-50mm

Material : Stainless steel

Diameter : Customize size, 32-1300mm

Length : 5.8M

Grade : 304

End connection : Wleded rings

Hole shape : Slot

Type : Filter Cylinder, FIlter Elements, Wedge wire screen pipe

Usage : Liquid Filter, Solid filter

Product name : Johnson screen cylinder, wedge wire screen, screen filter , Wire wrap screen

Contact Now

Stainless Steel Large Diameter Profile Wire Screen Pipe

Product Description:

Stainless Steel Large Diameter Profile Wire Screen Pipe is made by winding cold-rolled wire, approximately triangular in cross section, around a circular array of the longitudinal rods. The wire is attached to the rods by welding, producing rigid one-piece units having high strength characteristics at minimum weights.There is a fixed value slot between each v wire, and the continuous slot, designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.

Specificarion:

Material Stainless steel
Grade SS304 SS316L SS321 SS201
O.D Min. 32mm Max.1300mm
Size 2" 3" 4" 5" 6" 8" 9" 10" 12" 14" 16"
Length 100-6000mm
Solt size 0.1-30 mm
End connection Welded rings/ Nothing
Wire size 63# 93 # 118#
Support rod 120# 140 # 170# 200#
Wire shape V shape

Regular Specification:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)

3-1/2 88.9 1.0 3 >22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 >28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 >40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 >33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 >83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 >34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 >50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 >60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 >50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 >60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 >100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 >120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 >80 37.8 3.0*5.0 4.0MM/59

Application:

1. Heavy oil, sand oil, light oil, SAGD, CBM, bitumen, thermal

2. Water injection, bi-modal sand, carbonates, thin pay

3. Horizontal, vertical , deviated oil and gas and water wells

OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 32 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.

Pictures:

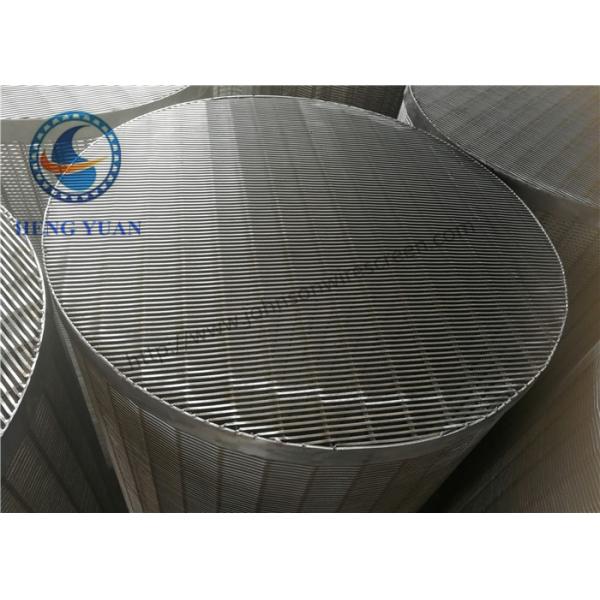

Johnson Water filter Screen Slot FIlter Screen Pipe Large Diameter 5.8M Length

Johnson Water filter Screen Slot FIlter Screen Pipe Large Diameter 5.8M Length
